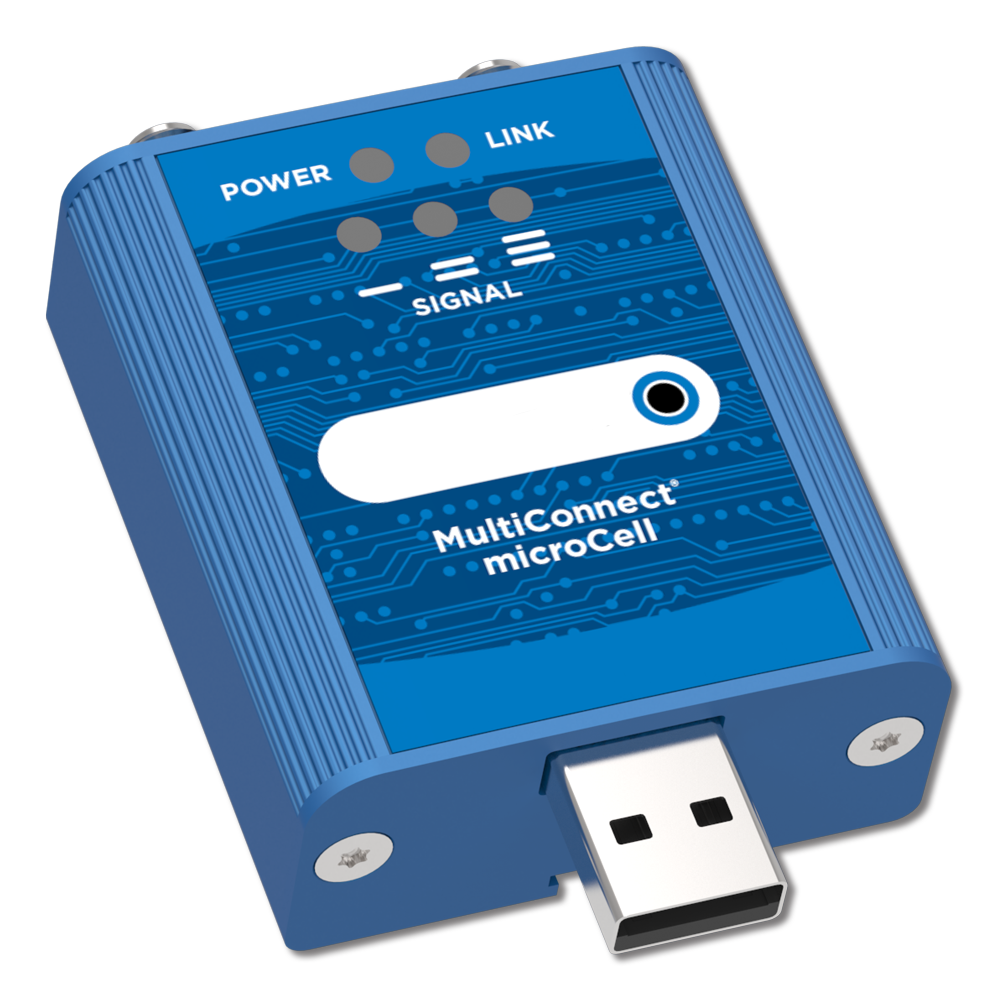

Cell Modem w/USB
AVTECH's Cell Modem allows you to send text message alerts over any LTE/GSM/GPRS/EDGE network from AVTECH's Room Alert Manager software. This compact 4G/3G modem connects directly to Room Alert Manager's host system by a USB 2.0 connector, which also provides power to the modem. It requires a SIM card (mini-SIM), which you may obtain from your cellular service provider.
Easy to install and plug-and-play, this quad-band modem is controlled via AT commands and programmable for setting and AT command customization. Built for AVTECH by Multi-Tech, it features complete IP connectivity and a robust compact casing, ideal for industrial environments.
Specifications
| Air Interface | LTE Cat 4 / GSM / GPRS / EDGE |
| Frequency Bands (4G) | B1(2100), B2(1900), B3(1800), B4(AWS1700), B5(850), B7(2600), B8(900), B12/B13(700), B18(850), B19(850), B20(800), B25(1900), B26(850), B28(700); TDD: B38(2600), B39(1900), B40(2300), B41(2500) |
| Frequency Bands (3G) | B1(2100), B2(1900), B4(AWS1700), B5(850), B6(800), B8(900), B19(850) |
| Frequency Bands (2G) | B2(1900), B3(1800), B5(850), B8(900) |
| Dimensions (L x W x H) | 2.45" x 1.79" x 0.78" (6.22 cm x 4.55 cm x 1.98 cm) |
| Regulatory | CE/RED |
| Safety | UL/cUL/IEC 62368-1 |
| Compatible Products | Room Alert 32S, 12S, 3S, 32E/W, 12E, 4E, 3E & 3W, all via Room Alert Manager host system |
In the box
- (1) Cell Modem w/USB connector (external, UL, RoHS)
- (1) External antenna
- Installation Note & Instruction Sheet
Downloads
Supplied, warranted and supported in South Africa by EDP Communications, an authorised Room Alert reseller. Prices are in ZAR and include import duties and local warranty.
