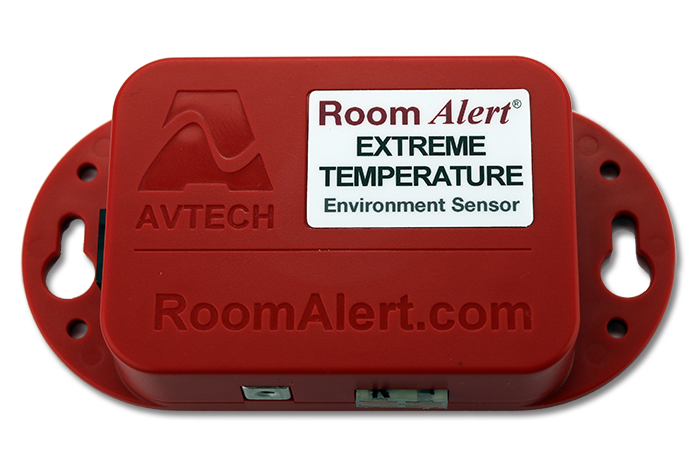

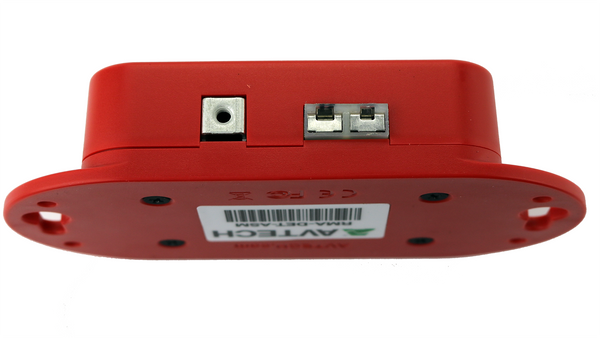

Digital Extreme Temperature Sensor
Each AVTECH Digital Extreme Temperature Sensor provides real-time temperature values from -200 to 500 °C (-328 to 932 °F). Accuracy is within +/- 2 °C.
The sensor tip is contained in a 1/8" (0.32 cm) stainless steel tube with 40" (1.02 m) stainless steel lead wires. It is designed to have the sensor tip installed directly into the location or equipment that needs monitoring. The steel lead wires have an optimal range of 0 to 100 °C.
This is a dynamic sensor that feeds temperature data back to the Room Alert monitor for data logging, alerting and automatic corrective action. This is an instant 'Plug & Play' sensor via one of the standard RJ-11 jacks on any compatible Room Alert monitor.
Specifications
| Environment Condition Monitored | Extreme Temperature |
| Sensor Range (probe only) | -328 to 932 °F (-200 to 500 °C) |
| Accuracy | +/- 2 °C |
| Resolution | +/- 0.5 °C |
| Power Supply | Monitoring Unit |
| Digital Sensor Cable Type | RJ-11 Cable |
| Digital Sensor Cable Length | 25' (7.62 m) |
| Maximum Digital Sensor Cable Length | Approximately 100' (30.48 m) |
| Compatible Products | Room Alert 32S, 12S & 3S manufactured in 2021 or later |
In the box
- (1) Digital Extreme Temperature Sensor w/25' (7.62 m) RJ-11 sensor cable
- Installation Note & Instruction Sheet
- 1 Year Warranty & Replacement Guarantee
Downloads
Supplied, warranted and supported in South Africa by EDP Communications, an authorised Room Alert reseller. Prices are in ZAR and include import duties and local warranty.
