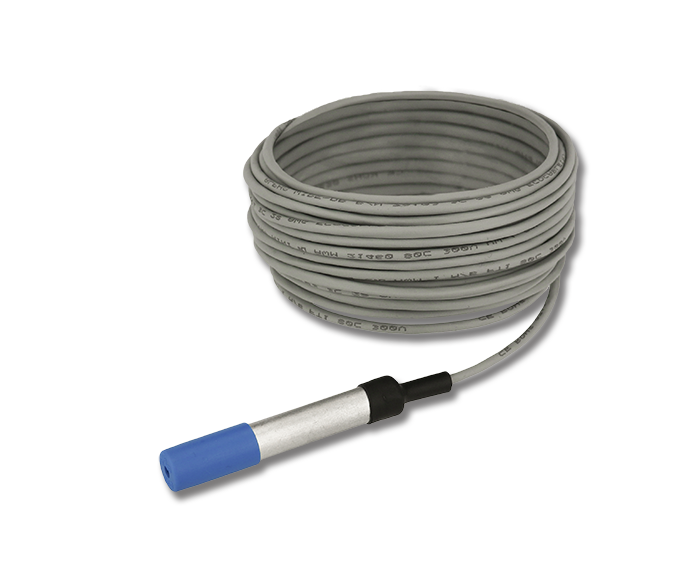

Digital Shielded Temperature & Humidity (25.9 m)
Each AVTECH Digital Shielded Temperature & Humidity Sensor provides real-time temperature values from -40 to 85 °C, accurate to within +/- 2 °C. The humidity range is 5% to 95% relative humidity (RH) non-condensing, accurate to within +/- 4.5% RH at 5 to 59% RH and +/- 6.5% RH at 60 to 95% RH.
The shielded sensor cable is ideal for use in environments with high electrical noise or EMI — plant rooms, switchgear rooms and industrial installations where an unshielded cable would pick up interference. This is the longest shielded run AVTECH offer, at 85' (25.9 m).
This is a dynamic sensor that feeds temperature and humidity data in real time back to the Room Alert monitor for data logging, alerting and automatic corrective action, via one of the standard RJ-11 jacks on any compatible Room Alert monitor.
Specifications
| Environment Condition Monitored | Temperature & Humidity |
| Digital Temperature Sensor Range | -40 to 185 °F (-40 to 85 °C) |
| Digital Temperature Sensor Accuracy | +/- 2 °C |
| Digital Temperature Sensor Resolution | 0.03125 °C |
| Digital Humidity Sensor Range | 5% to 95% RH non-condensing |
| Digital Humidity Sensor Accuracy | +/- 4.5% at 5 to 59% RH |
| Power Supply | Monitoring Unit |
| Digital Sensor Cable Type | Foil shielded, mPPE insulated RJ-11 cable |
| Digital Sensor Cable Length | 85' (25.9 m) |
In the box
- (1) Digital Shielded Temperature & Humidity Sensor w/85' (25.9 m) RJ-11 sensor cable
- Installation Note & Instruction Sheet
- 1 Year Warranty & Replacement Guarantee
Downloads
Supplied, warranted and supported in South Africa by EDP Communications, an authorised Room Alert reseller. Prices are in ZAR and include import duties and local warranty.
