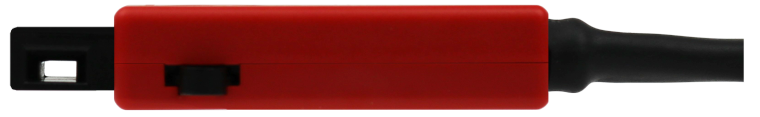

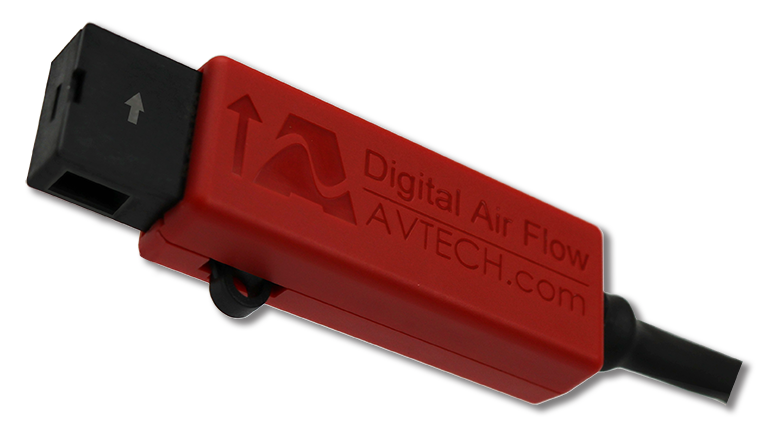

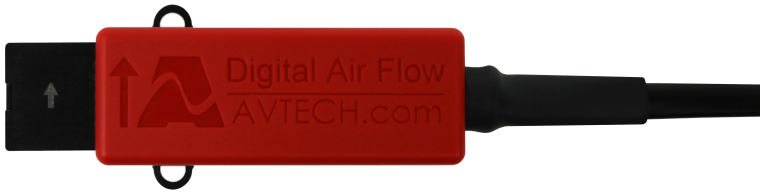

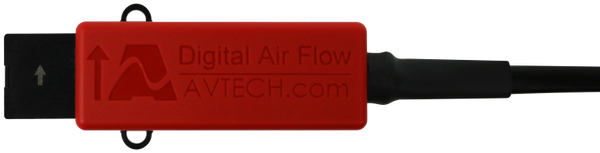

Digital Temperature & Air Flow Sensor
Regular price
R 4,599.87
AVTECH's Digital Temperature & Air Flow Sensor monitors air flow from vents, ducts and more in real time, notifying you of changes in air flow to help detect HVAC or ventilation problems and prevent costly downtime.
When air flows through the sensor, air speed readings are communicated to your Room Alert via a digital sensor port. Simply provide the dimensions of the vent being monitored and Room Alert calculates the air flow readings for you. This plug-and-play sensor additionally provides temperature values accurate to +/- 2 °C.
Specifications
| Environment Condition Monitored | Temperature & Air Flow |
| Digital Temperature Sensor Range | -40 to 185 °F (-40 to 85 °C) |
| Digital Temperature Sensor Accuracy | +/- 2 °C |
| Digital Temperature Sensor Resolution | +/- 0.03125 °C |
| Air Speed Range | 0 to 15 m/s (0 to 2952.76 ft/min) |
| Air Speed Accuracy | +/- 5% |
| Digital Sensor Cable Type | RJ-11 Cable |
| Digital Sensor Cable Length | 25' (7.62 m) |
| Maximum Digital Sensor Cable Length | Approximately 100' (30.48 m) |
In the box
- (1) Digital Temperature & Air Flow Sensor w/25' (7.62 m) RJ-11 sensor cable
- Installation Note & Instruction Sheet
- 1 Year Warranty & Replacement Guarantee
Downloads
Supplied, warranted and supported in South Africa by EDP Communications, an authorised Room Alert reseller. Prices are in ZAR and include import duties and local warranty.
