Fuel Tank Level 2 (NO)

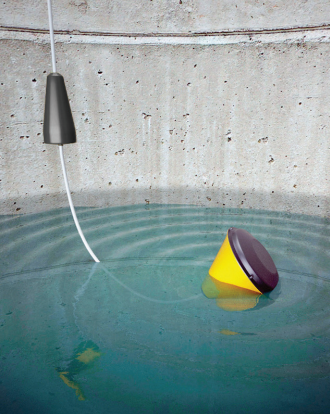

AVTECH's Fuel Tank Level Sensor monitors the rise and fall of fuel or other harsh liquids in a container (typically a large tank). The float switch and control weight are composed of chemically-resistant polypropylene; the 16' (4.88 m) cable is coated with rugged PVC. Because this sensor uses a dual-point switch and differential height between switch states, you can use just one sensor to monitor two levels — both high and low.

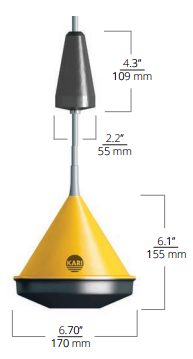

Dimensions of the float switch are 6.1" H x 6.7" W (15.5 cm x 17.02 cm). The control weight is 4" H x 2.25" W (10.16 cm x 5.72 cm). The 16' (4.88 m) attached cable with PVC coating has a protection rating of IP67 and NEMA 6. The switch state differential range is a minimum of 10" (25.4 cm) and a maximum of 50" (1.27 m). Please see the Installation Note for more information.
There is a Normally Open (NO) and a Normally Closed (NC) version of this sensor.
Specifications
| Environment Condition Monitored | Fuel Tank Level |
| Type Of Sensor | Switch |
| Power Supply | Monitoring Unit |
| Attached Tank Sensor Cable Type | Low-voltage 2-wire, PVC coated, IP67 NEMA6 |
| Attached Tank Sensor Cable Length | 16' (4.88 m) |
| Included Sensor Cable Type | Low-voltage 2-wire speaker cable |
| Included Sensor Cable Length | 25' (7.62 m) |
| Maximum Sensor Cable Length | 900' (274.32 m) |
| Float Switch Dimensions | 6.1" H x 6.7" W (15.5 cm x 17.02 cm) |
| Control Weight Dimensions | 4" H x 2.25" W (10.16 cm x 5.72 cm) |
In the box

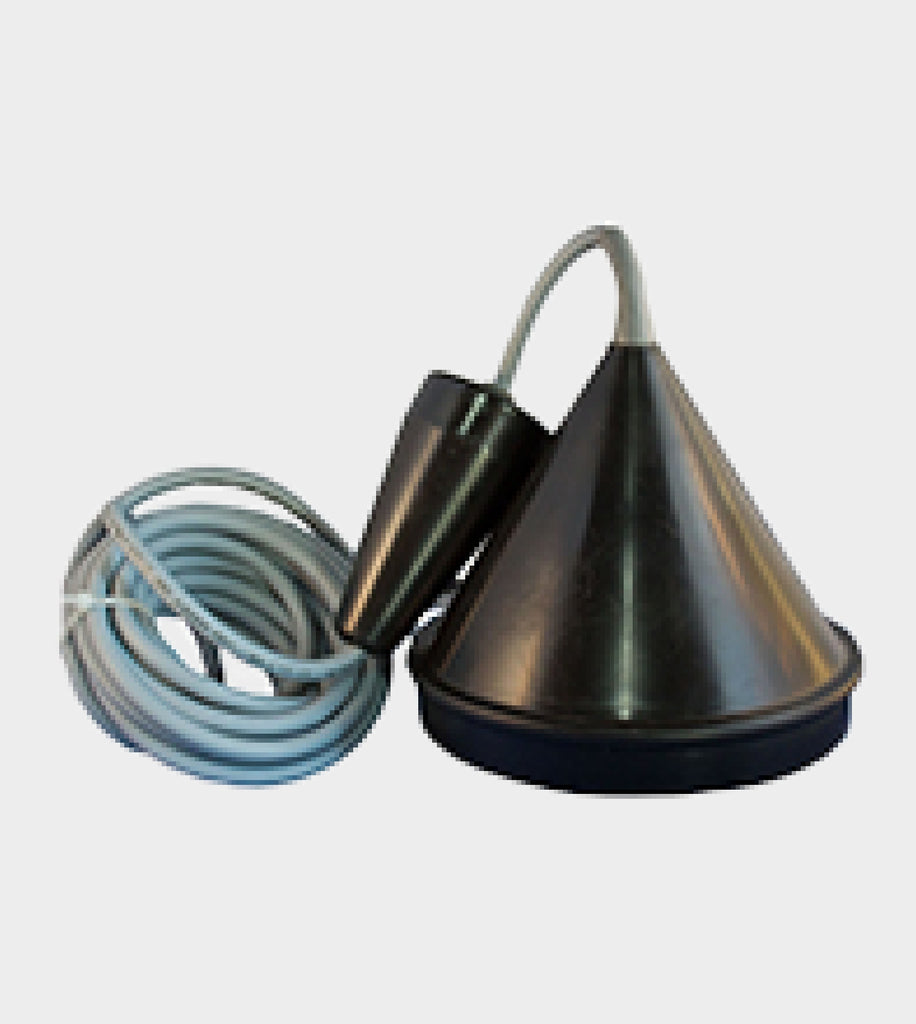

- (1) Fuel Tank Level Sensor w/16' (4.88 m) PVC coated cable
- (1) 25' (7.62 m) speaker wire cable (extendable up to 900' or 274.32 m)
- Installation Note & Instruction Sheet
- 1 Year Warranty & Replacement Guarantee
Downloads
