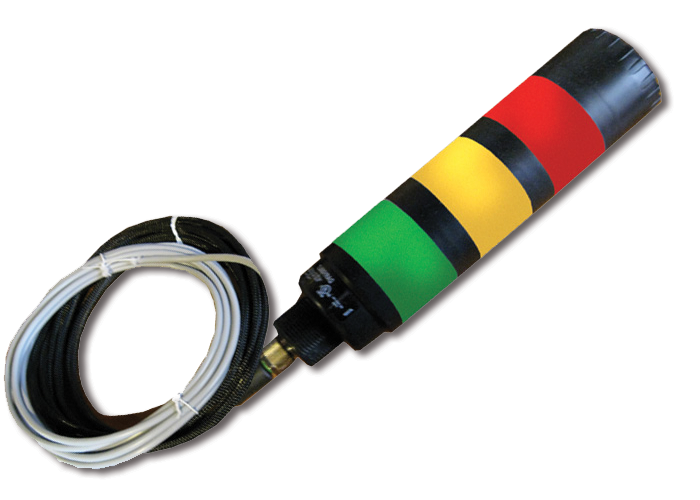

Light Tower w/Audio w/4.6 m Cable & LTA
The AVTECH Light Tower w/Audio enhances the alerting capabilities of the Room Alert 32S, 12S, 3S, 32E or 3E monitors with a visual and audible alarm when an issue or event occurs. The warning lights and audio alerts can be turned on or off automatically or manually via the Room Alert web interface, AVTECH's Room Alert Manager software and SNMP Set commands.
Any Room Alert on the network can enable or disable the lights or audio — the tower does not need to be attached to the unit raising the alarm. This lets you mount Light Towers wherever they are highly visible and trigger them from across the network.
The tower connects to the monitor via the included Light Tower & Relay Adapter, which includes a relay switch. The audio alarm is adjustable from 0 dB to 95 dB (at 1 m) by unscrewing the cover or removing the centre plug. It comes with a 15' (4.57 m) cable using 'twist & click' connectors, and can be extended to just over 30 m using AVTECH's 25' (7.62 m) Light Tower w/Audio Extension Cable only.
Specifications
| External Light Tower | Red-Yellow-Green w/Audio |
| Oscillation Frequency | 2.7 kHz +/- 50 Hz (max intensity 95 dB @ 1 m) |
| Adjustable Audio | Yes |
| Mounting Bracket | Yes — 1U rack, wall or other |
| Sensor Cable Type | AVTECH custom cable |
| Sensor Cable Length | 15' (4.57 m); extension cable available |
| Maximum Sensor Cable Length | Approximately 100' (30.48 m) |
| Compatible Products | Room Alert 32S, 12S, 3S, 32E, 12E & 3E |
| Relay Outputs (on included LTA) | 1 low voltage device |
In the box
- (1) Light Tower w/Audio
- (1) 15' (4.57 m) Light Cable
- (1) Light Tower & Relay Adapter
- (1) 25' (7.62 m) RJ-11 cable
- (1) 5V power adapter
- (2) Mounting Screws for LTA
- Installation Note & Instruction Sheet
Downloads
Supplied, warranted and supported in South Africa by EDP Communications, an authorised Room Alert reseller. Prices are in ZAR and include import duties and local warranty.
