Relay Switch Sensor w/Light Tower Adapter

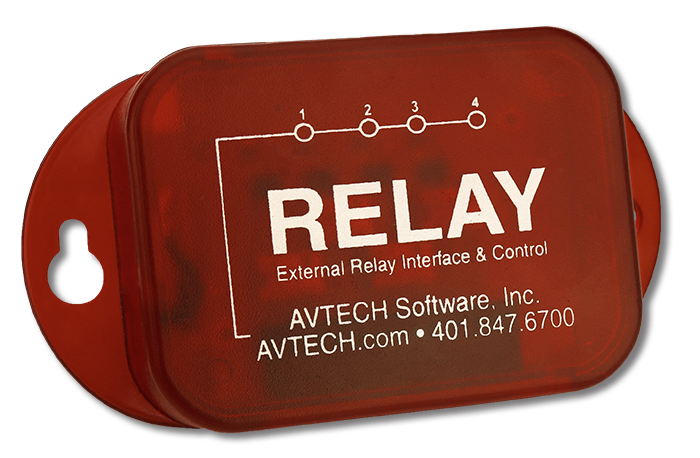

The AVTECH Relay Switch Sensor allows low voltage devices to be turned on or off in response to an event going in or out of an alarm condition. It supports up to 4 devices with visible relay status lights. Each relay supports loads up to 0.3 A at 125 VAC or 1 A at 24 VDC.
The 4 outputs can be individually controlled and activated directly from the Room Alert web interface or in response to an alarm condition.
This is an instant 'Plug & Play' switch that connects directly into the Light Tower connection port on any Room Alert 32S, 12S, 3S, 32E, 12E or 3E ID box. Switch cable is provided to connect the relay outputs to the desired device, such as a building alarm panel or other notification system, to automate alerting and response for static building alarms that do not notify staff. You can also connect it to a generator, backup HVAC unit, fan or water pump to switch it in response to an alert condition. Cable distance can be extended from the standard 25' (7.62 m) to approximately 900' (274.32 m) using standard speaker wire, twisted pair or any reliable low voltage 2-wire cable.
Specifications
| Function | Switches low voltage devices on/off; alarm panel interface |
| Relay Outputs | 4 on the Relay Switch Sensor, plus 1 on the included Light Tower & Relay Adapter |
| Maximum Relay Load | 0.3 A at 125 VAC, 1 A at 24 VDC |
| Sensor Cable Type | 2 Wire Sensor Cable |
| Sensor Cable Length | 25' (7.62 m) |
| Maximum Sensor Cable Length | Approximately 900' (274.32 m) |
| Compatible Monitoring Products | Room Alert 32S, 12S, 3S, 32E/W, 12E & 3E |
In the box
- (1) Relay Switch Sensor w/custom cable
- (1) 25' (7.62 m) Sensor Cable
- (2) Mounting Screws for Relay
- (1) Light Tower & Relay Adapter
- (1) 25' (7.62 m) RJ-11 cable
- (1) 5V power adapter
- (2) Mounting Screws for LTA
- Installation Note & Instruction Sheet
- 1 Year Warranty & Replacement Guarantee
