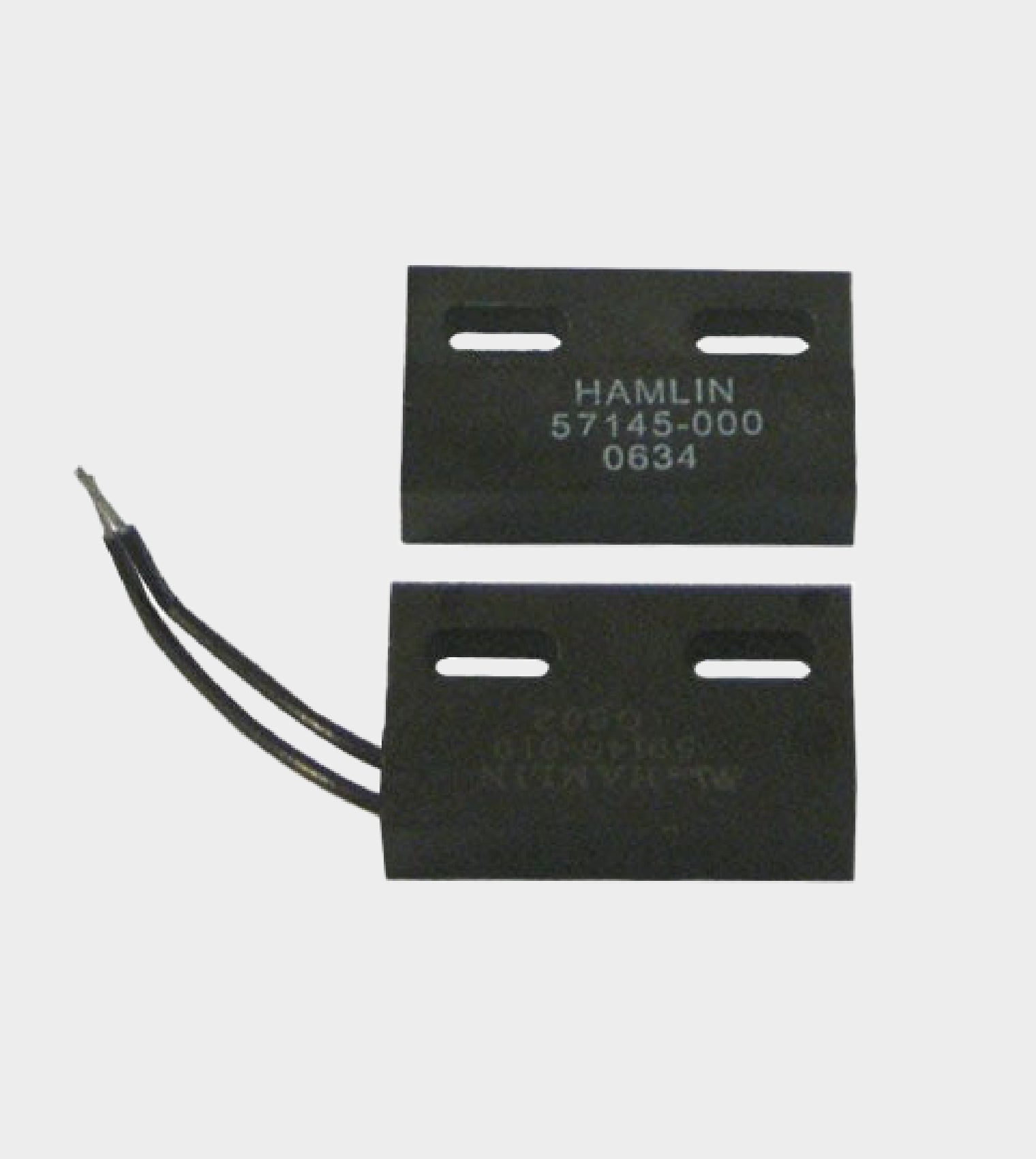

Room Entry Sensor
Each AVTECH Room Entry Sensor provides real-time recognition of a door or cabinet being open. Standard use is to mount the wired sensor to the frame of a door. Then, mount the matching actuator opposite of the sensor on the door itself. When the door opens, the two components separate and the sensor trips.
This is an instant 'Plug & Play' door entry alert sensor via one of the switch sensor channels on the back of any compatible Room Alert monitor. Cable distance can be extended from the standard 25' (7.62 m) to approximately 900' (274.32 m) by using standard speaker wire, twisted pair or any reliable low voltage 2-wire cable.
Specifications
| Environment Condition Monitored | Room Entry |
| Real-Time Recognition | Door/Cabinet Open/Closed |
| Power Supply | Monitoring Unit |
| Sensor Cable Type | 2 Wire Sensor Cable |
| Sensor Cable Length | 25' (7.62 m) |
| Maximum Sensor Cable Length | Approximately 900' (274.32 m) |
| Compatible Products | Room Alert 32S, 12S, 3S, 32E/W, 12E, 4E, 3E & 3W |
In the box
- (1) Room Entry Sensor w/25' (7.62 m) sensor cable
- (2) Mounting Screws
- Installation Note & Instruction Sheet
- 1 Year Warranty & Replacement Guarantee
